As-Built – 3D laser scanning for industrial plantsPlanning in existing plants – Frankfurt/Rhine-Main and nationwide

We capture industrial plants, plant rooms and buildings contact-free and precisely – from Frankfurt across the Rhine-Main region and nationwide. You receive the registered point cloud and, on request, the Plant 3D model with isometrics for modification and extension.

since 2013own laser scanner
425registered scans in one large project
about 0.2 hregistration per scan

The task

Design on the plant as it really is.

What you want

  • You want to design revamps on the actual as-built state.
  • You want everything to fit on site.
  • You want survey and design from one source.

Our solution

  • Laser scanning with our own scanner and team.
  • Point cloud in ReCap, model in EdgeWise, Plant 3D or Revit.
  • Clash detection in Navisworks.

Your advantage

  • Fewer re-survey appointments.
  • Design on a reliable as-built.
  • Survey, model and design from one source.
  • Digital twin for later revamps.

From scan to Plant 3D model

One workflow from a single source: what we scan, we register ourselves in Autodesk ReCap, detect lines with EdgeWise and continue planning in AutoCAD Plant 3D.

  1. SurveyOn-site scan with our own laser scanner
  2. ReCapRegister scans, prepare the point cloud
  3. EdgeWiseDetect piping and structural steel
  4. Plant 3DModel, isometrics, orthos
  5. HandoverPlant 3D, Navisworks, Revit

What changes for you

Starting point: You are modifying or extending an existing plant – the drawings are old or missing.
Effort

Without support

  • Manual measurement at the points that can be reached, and design based on the outdated state.
  • Deviations from the plant as built often only show up during installation.

Effort

With us

  • On-site scanning with our own laser scanner (since 2013), registration in Autodesk ReCap, pipe detection with EdgeWise, model in AutoCAD Plant 3D.
  • Registration: around 0.2 h of office work per scan (large project with 425 scans).
  • Example project: 20 scans, 99 detected lines, 22 isometrics, 10 orthos, around 37 h.

Risks

What you avoid

  • Pipes that do not fit during installation.
  • Clashes with the existing plant – we check them beforehand in Navisworks.

Result

What you get

  • Registered point cloud and, on request, the AutoCAD Plant 3D model with isometrics and orthos.
  • For a series in an existing plant: around 50–140 deliverable PDFs per project (isometrics, orthos, model drawings).

Figures from our project records and support evaluation, without customer names. As of 7 Nov 2026.

From practice: catalyst replacement at combined heat and power plants

A series in an operating plant – anonymized, with the quantities and hours from our project records.

2023–2026

Catalyst replacement at combined heat and power plants – as a series

Industry: Energy – exhaust gas cleaning of combined heat and power plants (for a plant manufacturer)

Scale: 26 projects in series; for 10 completed projects about 11–67 h, median about 27 h. Example project: 20 scans, 99 recognized pipelines, 22 isometrics, 10 orthos, about 37 h.

Your goal: You want to replace or retrofit catalysts in an operating plant – with a design that matches the plant as built.

Our solution: Survey by laser scanner, pipe recognition with EdgeWise, design in AutoCAD Plant 3D, clash detection in Navisworks.

Result: About 50–140 delivery PDFs per project (isometrics, orthos, model drawings); the workflow repeats as a series.

More projects & results › Estimate the effort for your survey ›

2021

Large laser scanning project with more than 400 scans

Scope: 425 registered scans, about 154 h (of which about 54 h on site, registration about 98 h).

Result: Registered point cloud; about 0.23 h of office work per scan for registration.

Full case study ›

Services

Laser scan survey

Plants, buildings, technical infrastructure.

Point cloud

Registered and in common formats.

CAD modeling

Piping and steel structures from the point cloud.

EdgeWise ›

BIM & digital twin

Models for Revit, Plant 3D and Navisworks.

2D derivation

Floor plans, longitudinal and cross sections – e.g. as a basis for conversions, also for residential buildings via architects and planning offices.

Training & support

ReCap, EdgeWise, Navisworks.

Training ›

In action

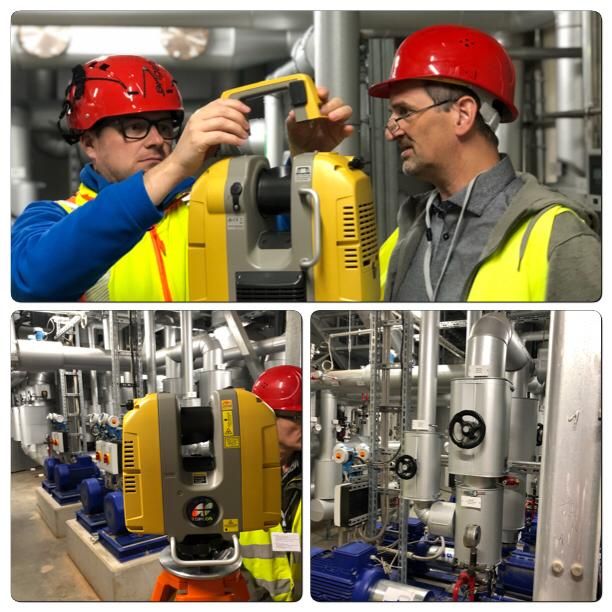

On-site survey
On-site survey – scan of a mechanical room – piping, pumps, valves
Sharing knowledge
Sharing knowledge – seminar "Laser scanning in practice – planning and executing a project"
Our laser scanner in use
Our laser scanner in use
Seminar “Laser scanning in practice” in our training room
Seminar “Laser scanning in practice” in our training room

Areas of application

  • Chemicals
  • Power plants
  • Process engineering
  • Food
  • Pharmaceuticals
  • Energy plants
  • Water & wastewater
  • Buildings & old buildings (via architects)

Frequently asked questions

Is the data compatible with CAD?

Yes, with common CADCAD – Computer-Aided Design Computer-aided design and drafting. Background and sources › and BIM systems – can be integrated directly into the design.

Do you also scan on site in the Rhine-Main area?

Yes – we are based in Frankfurt am Main, so distances in the Rhine-Main area are short. For assignments elsewhere in Germany and abroad, we plan to arrive the day before.

Is it worthwhile for small projects?

Yes, from detailed captures to large projects.

Also for private homes?

Yes – commissioned via your architecture or planning office: surveys of existing and old buildings, floor plans, sections and elevations as a basis for conversion and renovation.

Estimate the effort for your scan project

Describe the object, have documents evaluated as a ZIPZIP – ZIP archive Compressed archive containing several files in one file. Windows opens it without additional software, e.g. catalog and pipe spec for Plant 3D. Background and sources ›, check the bill of quantities – scan positions, days on site and modeling hours as guide values, with a summary for a specific quote.

Also available as a separate page: Scan project estimator
